Detect doors

Door detection · model door-detector

POST/v1/drawings/detection/doors

Find door leaves and paired door openings. This compatibility endpoint uses appliance detection with Door and DoubleDoor fixed. For selectable types, use appliance detection.

Accepts a previously uploaded document_id, enqueues inference, and returns a job you poll for results. Detections are returned as bounding boxes in PDF coordinate space.

Returns: A job to check202 Accepted
Usage: Element detectionper sheet
Results in: Door annotationsresult.doors
Auth: API keyX-API-Key header

Processing time (free tier)

Free-tier doors detection typically completes in 2–4 minutes per job. Processing time scales mainly with page count and drawing complexity — a dense multi-page set takes longer than a single sheet.

Review Developer and Enterprise plans for higher usage limits. Upgrade your plan

Example

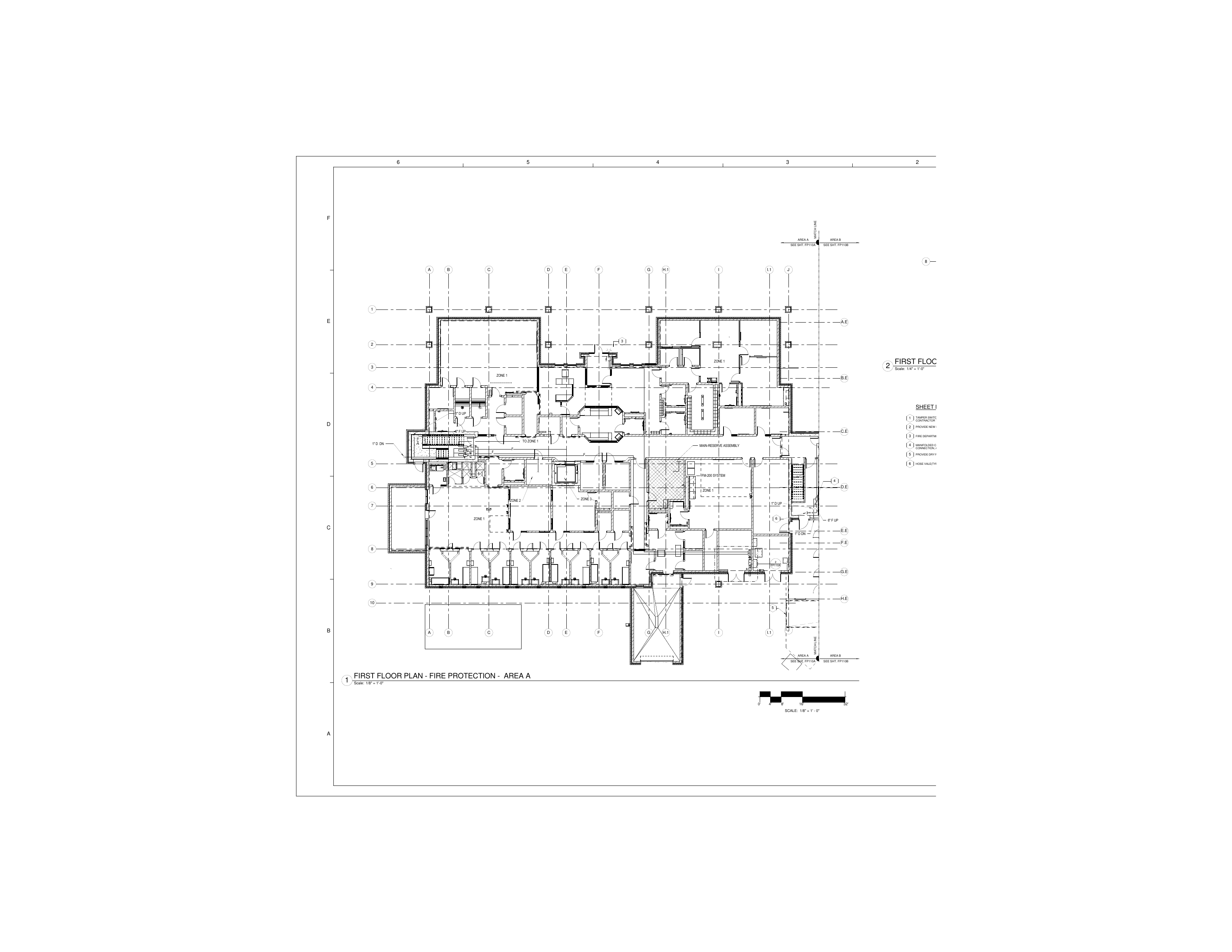

Floor plan input — A sample floor plan before and after door detection: 47 doors detected.

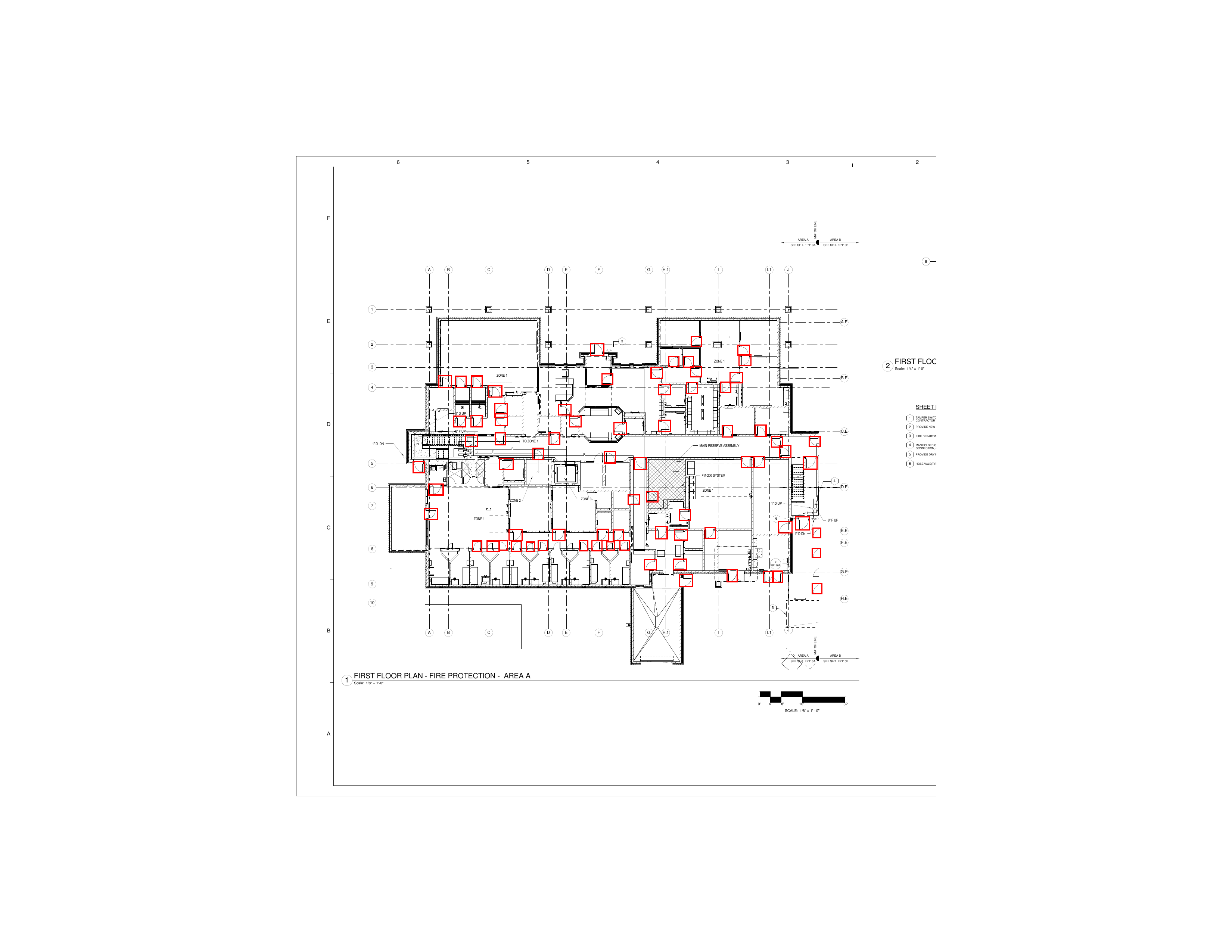

Floor plan with detected doors — A sample floor plan before and after door detection: 47 doors detected.

How it runs

Send a document_id
Get a job_id
Check your results or receive a webhook

Request

This endpoint requires a document_id. Upload your PDF first.

Body is JSON — this endpoint does not accept file uploads directly.

Field	Description
`document_id`string · UUIDRequired	ID of the uploaded PDF or image. Must belong to this account and not be expired.
`page_numbers`array of integersOptional	1-based page indices to scan, for example `[1, 2, 3]`. Omit to scan all pages. Out-of-range values are skipped by the worker but still counted.
`webhook_url`string · URLOptional	URL to POST the completed job payload to. Delivered on developer, pro, and enterprise tiers only.

Header	Description
`X-API-Key`Required	Your API key. A missing or invalid key returns 401.
`Content-Type`Required	`application/json`

UsageUsage is counted on submission: each page in page_numbers (or every page of the document when omitted) is one element detection, not only the pages that contain selected objects. Send only valid page indices.

Responses

The job is enqueued immediately. Poll GET /v1/jobs/{job_id} until status is complete or failed.

Field	Description
`job_id`string · UUID	Use this to poll for results.
`status`string	Always queued on this response.
`poll_url`string	Path only — prepend `https://api.anchorgrid.ai` to build the full URL.

When status is complete and model is door-detector, the result field on the job contains:

Field	Description
`document_id`string	UUID of the source document.
`doors`array	Door leaves and double-door openings. Each item has id, page, category_id, category_name, and bbox.
`doors[].id`string	Stable identifier — "door_" + 12 hex chars.
`doors[].page`integer	1-based page index where the object was detected.
`doors[].category_id`integer	Stable IDs: Door = 1, DoubleDoor = 2.
`doors[].category_name`string	Door or DoubleDoor.
`doors[].bbox`object	Axis-aligned bounding box in PDF coordinate space: x1, y1, x2, y2.
`doors_found`integer	Total number of returned door annotations, including double-door enclosing boxes.
`pages_analyzed`integer	Number of pages the worker actually scanned.
`model_version`string	e.g. `door-detector-fused-v3.1.0`
`processing_time_ms`integer	Wall time for the inference task.

Door returns one box per leaf, including the leaves of paired doors. DoubleDoor returns an enclosing box for the paired opening. When both are selected, a double door has two leaf boxes plus one pair box. This route always returns both classes and accepts the original document/page/webhook request. To select classes or detect toilets and urinals, use appliance detection. There is no confidence score.

Usage & rate limits

Each page scanned is one element detection (See pricing). Rate limit: tier RPM (5 / 60 / 120 / 300).

Plan	When the allowance is used up
`trial`	Trial allowance — `402 FREE_TIER_LIMIT_REACHED` when used up, `402 TRIAL_ENDED` once the trial is over.
`developer`	Monthly allowance, then overage up to your overage limit — `402 OVERAGE_LIMIT_REACHED` at the limit (`429 QUOTA_EXCEEDED` when the allowance is used up without overage billing).
`enterprise`	No allowance check.

Rate-limit 429s include retry_after_seconds in the body. Quota 429s and rate-limit 429s return the same status code — check the error body to distinguish them.

Errors

Status	What it means
401	Missing or invalid X-API-Key.
402	Trial allowance used up.
404	document_id not found or expired.
422	Validation error — malformed UUID or invalid body.
429	Rate limit or monthly quota exceeded.

Examples

curl -X POST https://api.anchorgrid.ai/v1/drawings/detection/doors \
  -H "X-API-Key: <your-api-key>" \
  -H "Content-Type: application/json" \
  -d '{
    "document_id": "550e8400-e29b-41d4-a716-446655440000",
    "page_numbers": [1, 2, 3]
  }'

Response · 202

{
  "job_id": "7c9e6679-7425-40de-944b-e07fc1f90ae7",
  "status": "queued",
  "poll_url": "/v1/jobs/7c9e6679-7425-40de-944b-e07fc1f90ae7"
}

Completed job · result

{
  "document_id": "550e8400-e29b-41d4-a716-446655440000",
  "doors": [
    {
      "id": "door_a1b2c3d4e5f6",
      "category_id": 1,
      "category_name": "Door",
      "page": 1,
      "bbox": {
        "x1": 120.5,
        "y1": 340,
        "x2": 145.25,
        "y2": 380.75
      }
    },
    {
      "id": "door_b2c3d4e5f6a1",
      "category_id": 1,
      "category_name": "Door",
      "page": 1,
      "bbox": {
        "x1": 210,
        "y1": 180.5,
        "x2": 234.75,
        "y2": 220.25
      }
    },
    {
      "id": "door_c3d4e5f6a1b2",
      "category_id": 2,
      "category_name": "DoubleDoor",
      "page": 2,
      "bbox": {
        "x1": 88,
        "y1": 412,
        "x2": 112.5,
        "y2": 452
      }
    }
  ],
  "doors_found": 3,
  "pages_analyzed": 2,
  "model_version": "door-detector-fused-v3.1.0",
  "processing_time_ms": 8420
}
